Packing
Packing has been devised to guarantee a safe shipment of the goods all over the world.
The dimensions of the standard packaging enable to optimize the loading and prevent the pallets moving inside the container, both when they lay on a single layer and when they are stacked.
Special packings (including europallets) are available to meet specific needs.
"Short" (stackable) pallets (height: 100-120 cm) are meant to be stacked inside a truck or a container.
"Tall" pallets (height: 165-175 cm) are meant not to be stacked
inside a truck or a container.

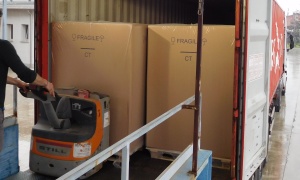

A truck allows to load 44/48 short (stackable) pallets (about 48/52 m3).
A 40' container accomodates 40 short (stackable) pallets
or 20 tall (non-stackable) pallets.
A 20' container accomodates 20 short (stackable) or 10 tall (non-stackable) pallets.
Packing methods and materials
-

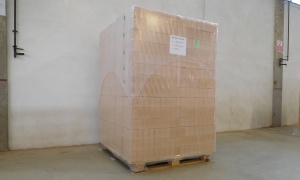

TRANSPARENT
- 4-way entry IPPC pallet cm 112 x 115
- Plastic bottom foil
- Cardboard foil every max. 3 layers of bricks, plus bottom and top

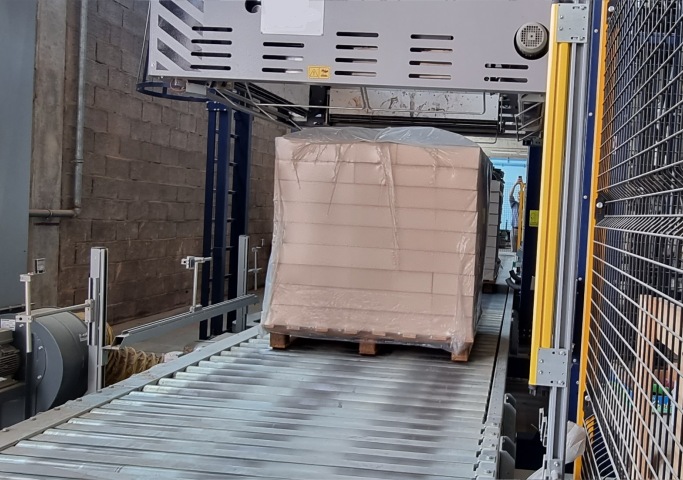

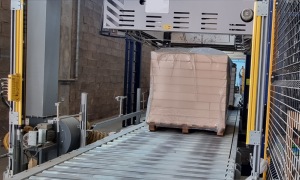

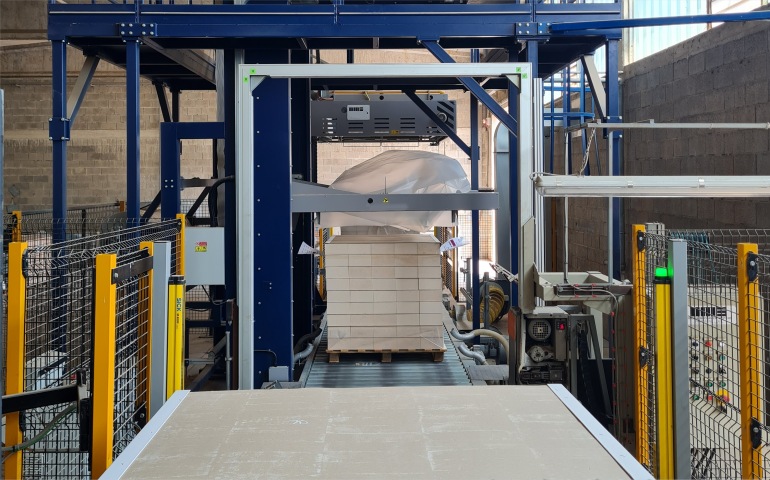

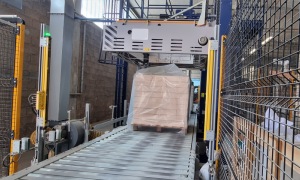

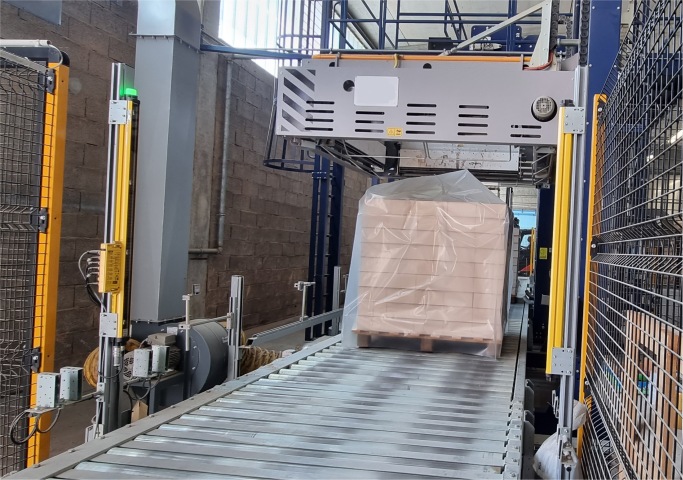

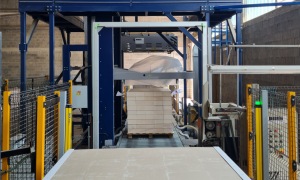

- Shrinkfilm
- Marking on two opposite sides, under the shrinkfilm
20' container 10 tall pallets or
20 short pallets40' container 20 tall pallets or
40 short pallets -

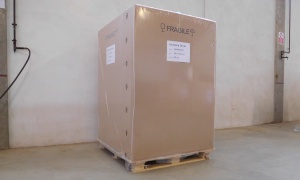

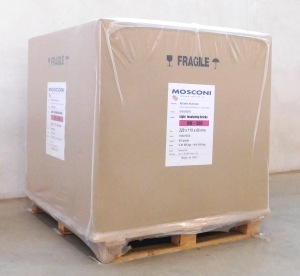

CARDBOARD
- 4-way entry IPPC pallet cm 112 x 115
- Plastic bottom foil
- Cardboard foil every max. 2 layers of bricks, plus bottom and top
- Double-corrugated cardboard around the pallet
- Shrinkfilm
- Marking on two opposite sides, under the shrinkfilm
20' container 10 tall pallets or
20 short pallets40' container 20 tall pallets or
40 short pallets -
REINFORCED
- 4-way entry IPPC pallet cm 112 x 115
- Plastic bottom foil
- Cardboard foil every layer of bricks, plus bottom and top
- Double-corrugated cardboard around the pallet
- No. 2 horizontal edge protection
- No. 2 polyester vertical straps
- Shrinkfilm
- Marking on two opposite sides, under the shrinkfilm
20' container 10 tall pallets or
20 short pallets40' container 20 tall pallets or
40 short pallets
Please note: the bricks are inert and don't have expiring date.
The shrinkfilm enables out-door storage, but only for limited period: please make sure that the shrinkfilm remains waterproof and replace it if faulty.
In case the bricks get wet, dry them before installation. For long period, storage under tarpaulin is recommended.
